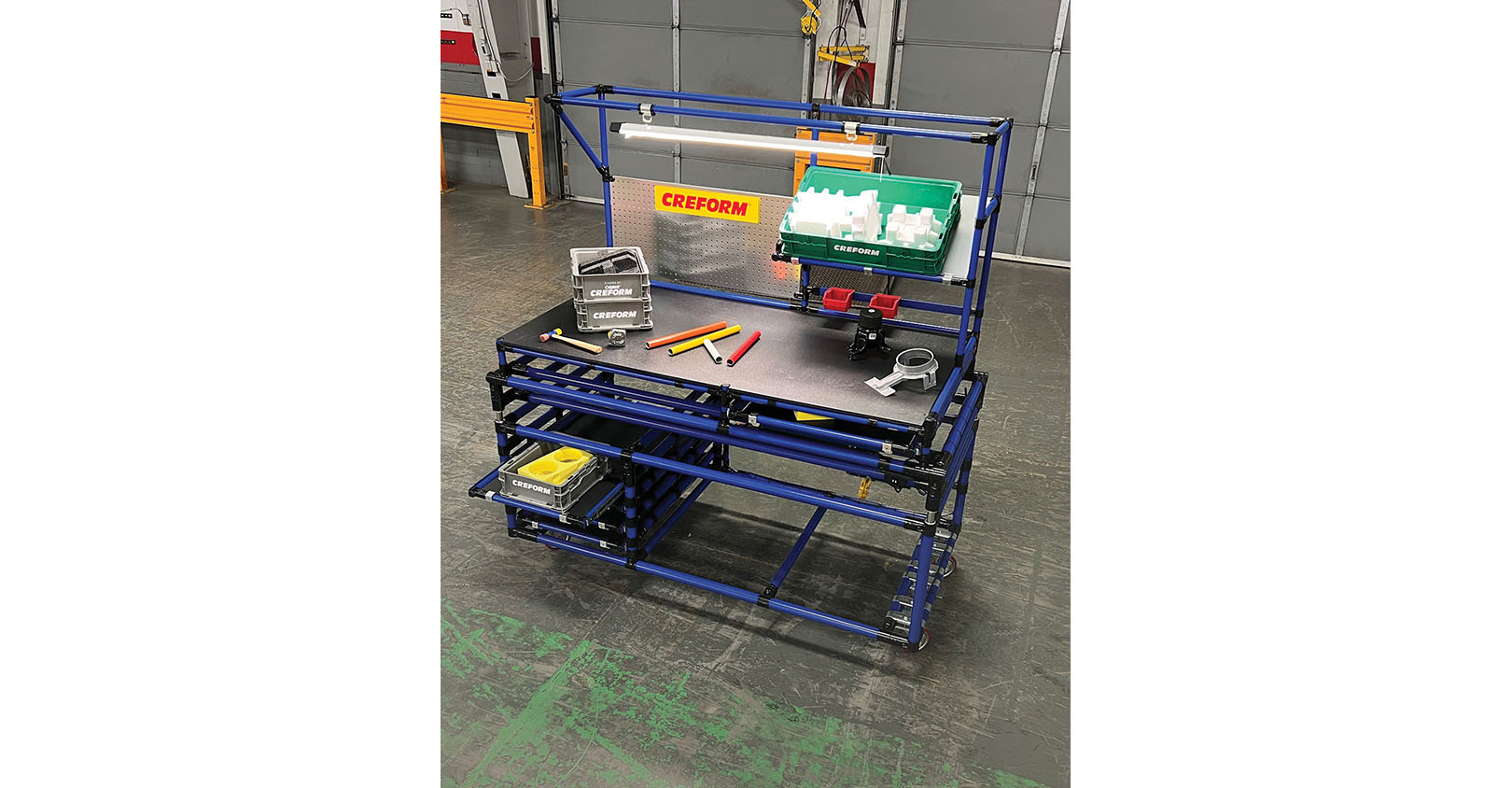

With overall dimensions of 72 W x 78 H x 34 in. D (182.9 x 198.1 x 86.4 cm), the workstation with an ergonomic lift system is built with 42 mm and 28 mm pipe and joints. Boosting ergonomics, the height can be optimized with the hydraulic cylinder secured inside each of the four vertical legs.
Only the work surface and above move up and down as the lift is actuated. It has a 1,000 lb. (453.6 kg) capacity. The system requires a 110 V receptacle to be close to provide power as an electric push button is what raises and lowers the workstation.
It features a plastic work surface across the front, creating a place for product assembly, tools, gages, supplies, and work instructions. Above the work surface on the right side, Creform’s flat pipe is used to hold clip-on plastic bins while the shelf above right stores raw materials and supplies. The angled presentation provides better visibility to the operator.
A steel pegboard on the left uses hooks and can hang tools and supplies. An overhead LED light is mounted to the upper frame. It can be built as a stand-up or sit-down station; it can also be mobile or stationary.
